Metal 8 Port Wall Mounted Distribution Box With Plastic Splice Tray Inside

Name: Metal 8 Port Wall Mounted Distribution Box With Plastic Splice Tray Inside
Brand: CSYHT
Price: 1 USD

China Metal 8 Port Wall Mounted Distribution Box With Plastic Splice Tray Inside factory

Brand Name : CSYHT

Model Number : OTB-A08

Place of Origin : China

MOQ : 10 pcs

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 300pcs per day

Delivery Time : about 5 days

Packaging Details : carton

Material : Metal

Size : 150x260x44mm

Adapter port : 8 port for SC, LC, ST, FC adapter

Capacity : 8, 12, 24 fibers

Cable port : 2 cable port

Application : Indoor wall mounted

Price : Negotiable

Contact Now

Metal 8 port fiber optic FTTH box for indoor wall mounted application

Description:

OTB-A08 Fiber Optic Terminal Box is made of cold-roll steel box, small size, with plastic splice tray inside. It is 8 ports and provides an economical way for terminating small optical fiber.

Features:

Non-sealed type, fixed by bolt.

Two cable ports for indoor cable connection

Easy for operation, has high containing ability for surplus pigtails

Can connect/reconnect to adapters more than 200 times

Connector for FC, SC, ST or LC

Specification:

Item	Description
Dimension(L X W X H)	26.5 x15.5 x4.8cm
Weight	1kg
Lateral pressure-resistance	500N
Shock-resistance	750N
Working temperature	-40℃ ~ +80℃
Max. Capacity	8 fibers

Applications:

Suitable for Pigtail, ribbon and bunch cable connectors distribution

Used in wall or terrace installation

Pictures:

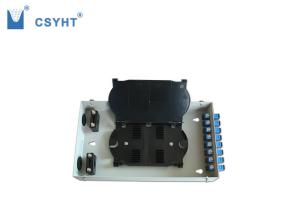

Metal 8 Port Wall Mounted Distribution Box With Plastic Splice Tray Inside
