Rackmount swing panel 144cores 19 Inch Rotary ODF 3U Fiber Optical Distribution Cabinet
144 Core Fiber Optical Distribution Frame 19 Inch Cabinet 3U 144 Core Rotary ODF (ODF-RW3U144-C) is made of cold roll steel, splice tray can be rotated out. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.
Features:
- 19’’Standard size, Suitable for ribbon and single fiber
- Various panel plate to fit different adapter interface
- Front mark on the plate is easy for identification and operation
- 24C, 36C, 48C, 72C, 96C… optional, with or without fiber optic pigtails and adapters
- Material: Outer shell is Cold-roll steel;Inside ABS material splice tray
- 6pcs splice trays; each splice tray 24 cores
- Capacity: 144cores
Specification:
| P/N | ODF-RW3U144-C | Type | Rotary Type |
| Dimensions | 440*396.2*131.9 mm | Splice Capacity | Max. 288FO |
| Cable Port | No cable ports | Splice Tray | 12 splice tray |
| Color | White, Black, Grey | Material | Cold roll steel |
| Adapter Port | 144 SC simplex | Application | Indoor rack mounted |
| Feature | 1U, 2U, 3U, 4U ODF can be customized according to customer's requirements |

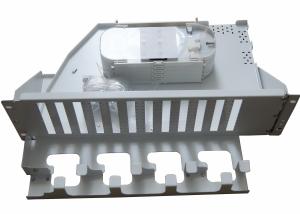

Product Pictures:
Application:
- FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Other Similar Products (can be customized according to your requirements):
Factory Information (more information please view our company website: www.szyht.com.cn):
Shenzhen YHT Broadband Equipment Co., Ltd. is a high technology company having its own brand “CSYHT” and specializing in R&D, manufacture and sales of fiber optic products.
v It was established in 2003, and grows up rapidly.
v In 2011, branch factory was established in Huizhou city.
v In 2014, branch factory was renamed, Huizhou YHT Broadband Equipment Co., Ltd.
v In November 2016, factory moved to YHT industry park.
v The area of YHT industry park is about 36,000 square meters, more than 8 buildings.
The main products include 19’’ fiber optic patch panel, distribution box, ODF, FTTH terminal box, fiber optic splice closure, fiber optic cabinet, optical splitter box, fiber optic connector, patch cord, pigtail, adapter, attenuator etc. which are widely used in FTTx, GPON, CATV, telecommunications and so on.
