4F FTTH Fiber Access Terminal Box 4 SC 12FO Fiber Optic Wall Box

Name: 4F FTTH Fiber Access Terminal Box 4 SC 12FO Fiber Optic Wall Box
Brand: CSYHT
Price: 2.5 USD

China 4F FTTH Fiber Access Terminal Box 4 SC 12FO Fiber Optic Wall Box factory

Brand Name : CSYHT

Model Number : OTB-C04-D

Certification : CE, ISO, RoHS

Place of Origin : China

MOQ : 50pcs

Price : USD2.5~5.5/piece

Payment Terms : T/T

Supply Ability : 500pcs/day

Delivery Time : 10days

Packaging Details : Carton

Material : ABS plastic

Splicing capacity : 4 fibers

Cable port : 2 port & 4 drop cable port

Application : Indoor wall mounted type; Cable entry without cutting

Name : Splitter box for FTTH

Protection level : IP65

Contact Now

4 fibers Indoor Fiber Access Terminal Box , Fiber Optic Wall Box with 4 SC adapters

OTB-C04-D

Description:

OTB-C04-D is an indoor wall mounted fiber optic terminal box that can load 4pcs SC simplex adapters for fiber splicing and distribution.

Features:

Made of ABS plastic, the cover is inserted into base.

Reasonable design, suitable for 4pcs SC simplex adapter, pigtail, and fast connector.

2pcs cable entry ports, max cable dimension 8mm, cable can be entry without cutting.

4pcs drop cable entry ports, easy use.

Can put one 1*4 PLC splitter.

Used in the end termination of residential building and villas, to fix and splice with pigtails.

Specification:

Model

Dimension

W*H*D (mm)

Material

Adapter port

Splicing capacity

Cable port

Remark

OTB-C04-D

90x165.73x24.1

ABS plastic

4pcs

4 fibers

2 port & 4 drop cable port

Indoor wall mounted type;

Cable entry without cutting

Packing information:

Model	Carton Size	Weight	Qty/CTN
OTB-C04-D	53.55133.5CM	About 20kgs	150pcs per carton

Accessories:

Item	Specification	Qty
Nylon tie	3*120mm	4pcs
Plastic expansion bolt	￠6mm	3pcs
Round head self-tapping screw	C-type 4*20	3pcs

Dimension: (mm)

4F FTTH Fiber Access Terminal Box 4 SC 12FO Fiber Optic Wall Box

Product Tags:

FTTH Fiber Access Terminal Box

4F Fiber Access Terminal Box

12FO Fiber Optic Wall Box

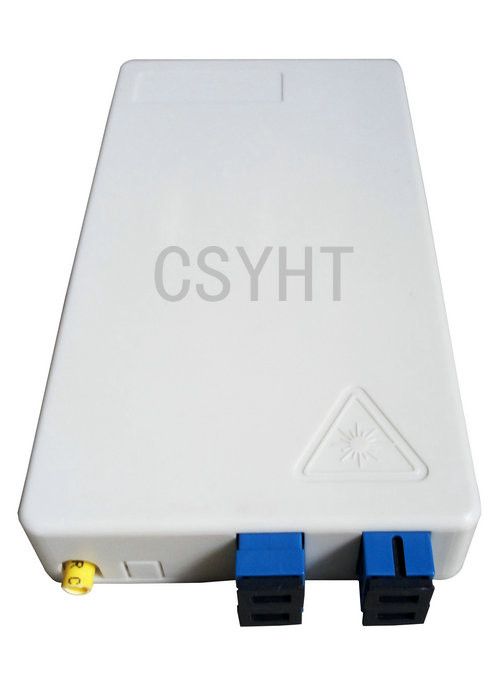

4F FTTH Fiber Access Terminal Box 4 SC 12FO Fiber Optic Wall Box Images
